Solar Water Heaters > Solar Water Collector [SC5824]
Search Store
Item Pictures

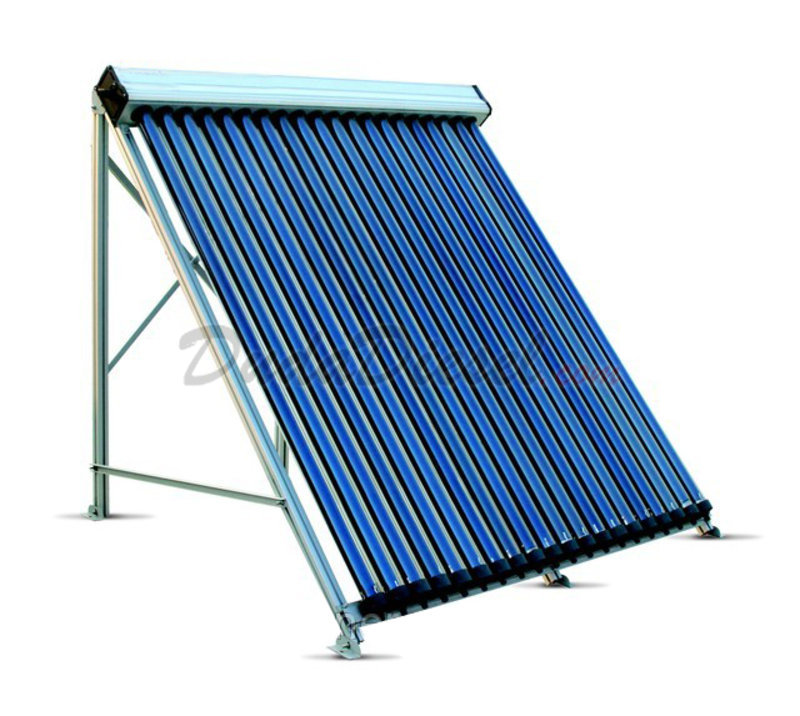

24 tube solar water heater collector 24 tube solar water heater collector

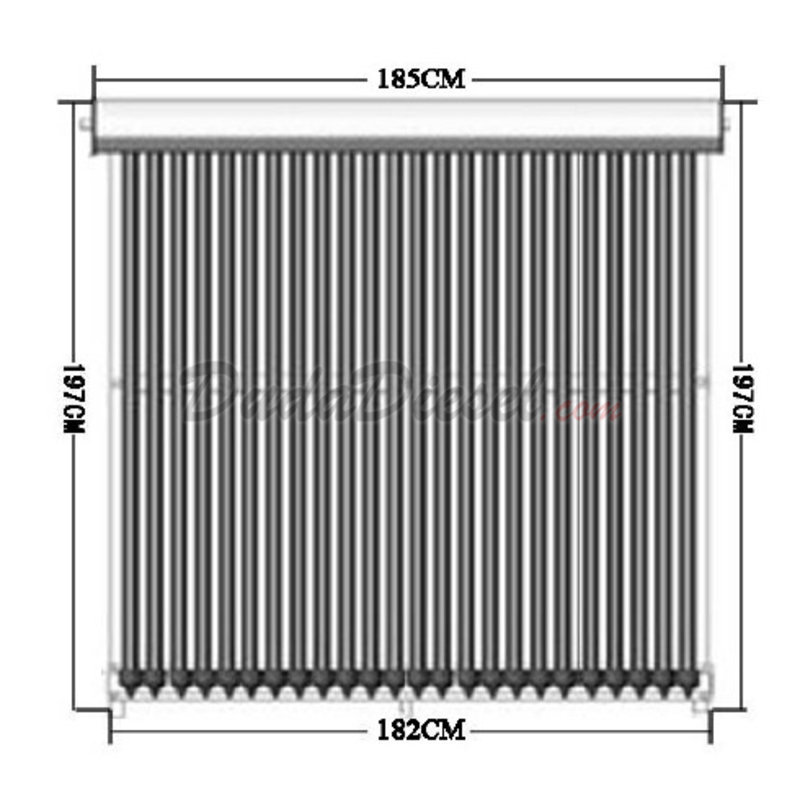

24 tube solar water heater collector sketch 24 tube solar water heater collector sketch

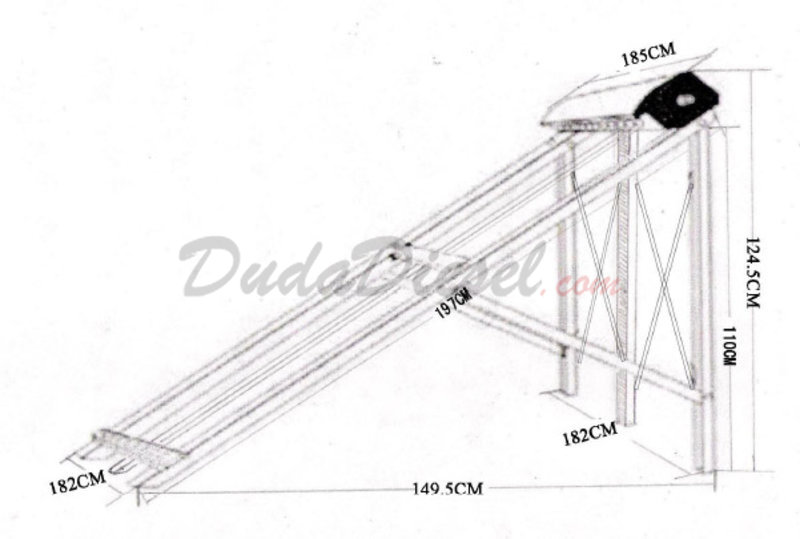

24 tube solar water heater collector in stand sketch 24 tube solar water heater collector in stand sketch

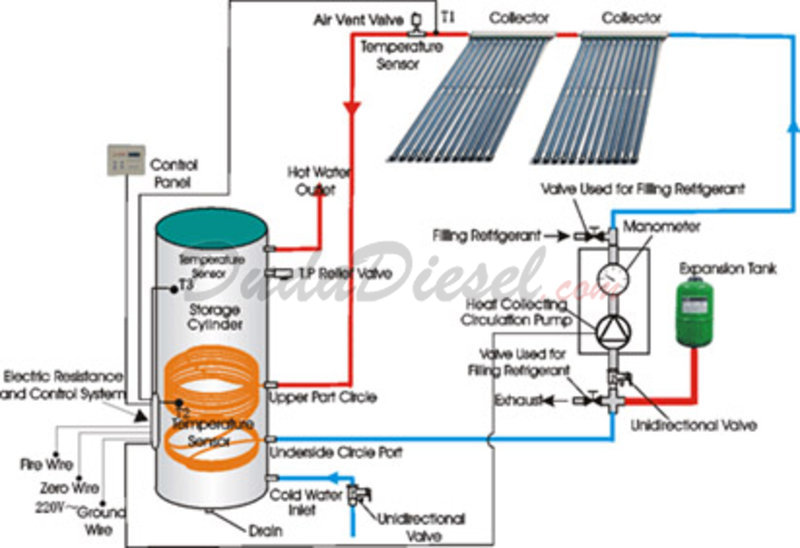

solar system design 1 solar system design 1

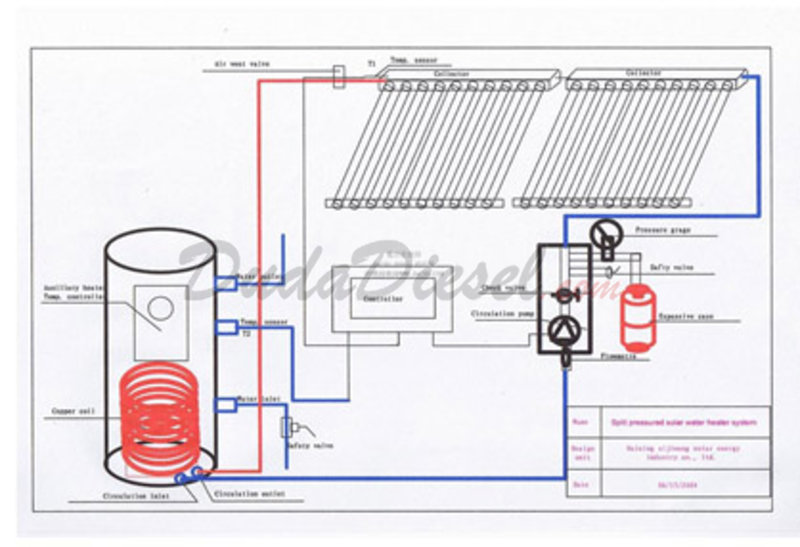

solar system design 2 solar system design 2

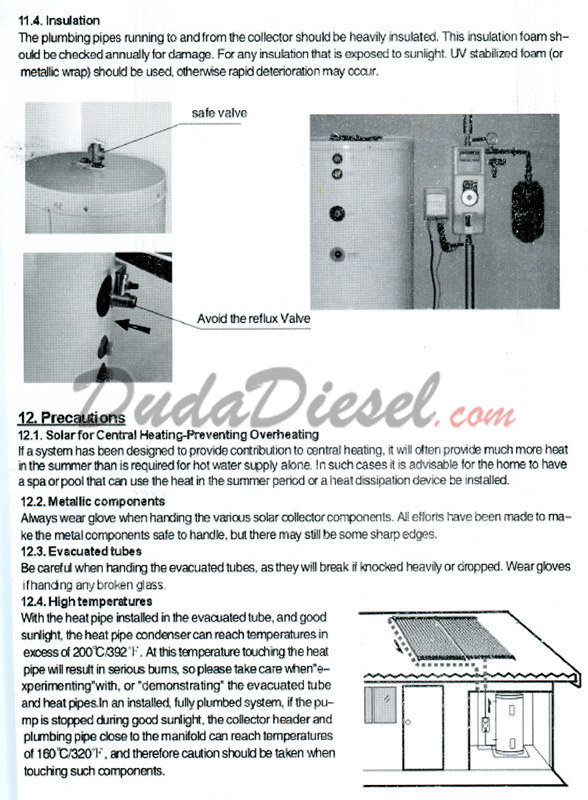

solar system design 3 solar system design 3

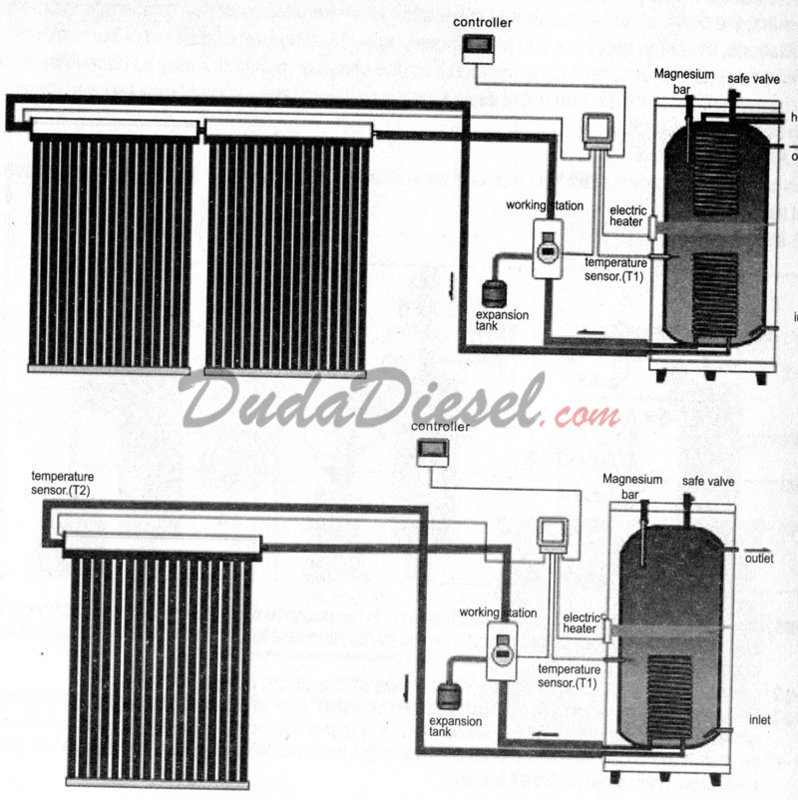

system configuration1 system configuration1

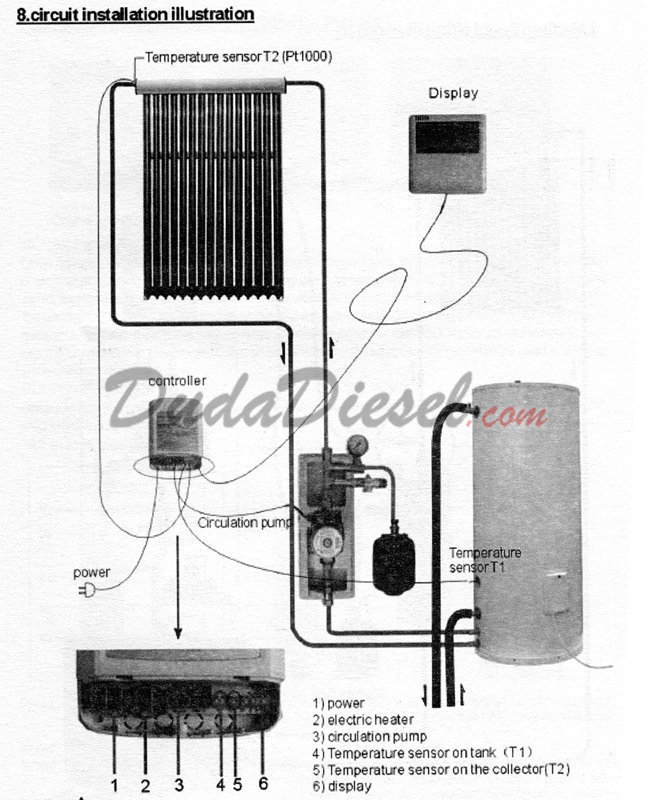

system configuration2 system configuration2

Item Description

Solar Water Heater Collectors

Φ58mm x 1800mm Vacuum Tubes

Available in 18, 24 & 30 tube manifolds. Manifolds can be connected in series to make larger heaters.

Weather Resistant, Closed Loop System

For use in active solar systems with separated water storage tank

OG-100 SRCC Certified - Eligibile for 30% Government Tax Rebate (Currently good until 2016)



For information on how active solar water heater systems work, please read our article on active solar water heaters



Parts Included:

Solar collector manifold

Corresponding Φ58 x 1800mm Long Vacuum Tubes with copper heat pipes & Aluminum fins (pre-installed into tubes)

Spare Vacuum tubes (for breakage insurance during freight transit, extras may be kept by customer as spares)

Roof mounting gear with optional 37°/45° Inclined stand for Flat Roof / Ground installation

Bottom support feet for tubes with easy & secure snap-in design (will not allow tube to slide off rail like other designs)

Hex Bolts & Nuts

OG-100 SRCC Certificate, Installation manual & Installation Tips



Warranty

The manufacturer covers failure due to manufacturing defects for the following warranty time period.

Collector Warranty: 5 Years
Tube Warranty: 15 Years



Winter Resistant

Use of non-toxic propylene glycol antifreeze makes this solar collector winter freeze resistant. For use with water storage tank with built-in heat exchanger.



Certifications

SRCC Certified - Eligibile for Government 30% Tax Rebate

ISO 9001:2000 Standard - Reg: CN00208Q10492R0M

ISO 14001:2004 Standard - Reg: CN-00208E20080R0M

ROHS Report - Reg: SHR0808053030F001C

SRCC Certificate:



Some of the many uses:

Heat domestic home water

Solar Radiant home heating

Radiant floor heating

Pool & jacuzzi heating



Product Information

  1. Uses heat pipes to collect heat to the water supply. This solar heater can work under high pressures and can supply hot water to high and far away places.
  2. Product model: SC58## (## = number of tubes)
  3. Use of heat pipes allows for high heat absorption efficiency and rapid heat transfer. Also allows for freeze-protection for year round use.
  4. Easy plugin-in design and installation.
  5. Corrosion resistent aluminum manifold and frame.
  6. Optional 37° or 45° frame included for ground/flat roof installation. Can withstand wind velocity of 36m/s (81 mph)
  7. Can supply hot water to both small and large tanks of water and meet small and high demands.
  8. Economical for homes, hotels, schools, domitories, hospitals and any other tall buildings.

System Sizing Chart & General Information

Item Number
Specs
# of Tubes
Absorber Area
Daily output volume 50°C (122°F)
Suggested Tank Size
# of people recommended for
Spare
Tubes Provided
SC5818 Φ58mm x 1800mm 18 2.35 m² 140-200 Liters (37-53 Gallons) 150 Liters (40 Gallons) 1-2 6
SC5824 Φ58mm x 1800mm 24 3.06 m² 185-250 Liters (49-66 Gallons) 200 Liters (50 Gallons) 2-3 8
SC5830 Φ58mm x 1800mm 30 3.84 m² 210-300 Liters (55-79 Gallons) 250 Liters (65 Gallons) 3-4 10

Definitions for sizing chart & information:

Item Number
Our item number for identification of product.
Specs
Diameter and length of vacuum tubes.
# of tubes
Number of tubes for specified system.
Absorber area
Surface area of the tubes exposed to the sun.
Daily Output Volume
This is the volume of water which can be heated to 50°C/122°F on a daily basis for consumption. Assume a maximum of 40 liters (10 gallons) per person per day.
Suggested Tank Size
suggested size of the solar water heater storage tank. Select a larger than recommended tank when large volumes of water may need to be used within a short period of time. Larger tanks will store lower temperature water while smaller tanks will store hotter water . The more water that needs to be heated, the more energy it will take to boost up the overall temperature of the tank.
# of people recommended for
This is how many people per household the heater is recommended for. Preferences may vary based on each household. If little or no backup heating is preferred, or hotter water is desired, it is best to oversize by 1 or 2 units. 30 tube units are most popular for most households since they maximize the cost to heat output ratio.
Spare tubes provided
number of extra vacuum tubes provided with the system. These are meant for breakage insurance during freight, and may be kept by the customer as spares. Spare tubes are not replaced if broken in transit.

Solar Water Heater Specifications

Inner manifold material
Red copper channel
Outer shell material of manifold
Aluminium alloy
Frame material
Aluminium alloy
Heat pipe material
99.93% pure cooper & lead free, 45% silver brazing
Rubber Seals and rubber Rings
HTV grade silicone rubber
Optional installation angle
37° stand (ground and flat roof installations)
Maximum Operating Pressure
12 bar (175 psi)
Vacuum tube
Ø58-1800mm co-axial structure high borosilicate 3.3 three-target glass vacuum tube with anti-frozen copper heat pipe
Manifold Plumbing Connections
3/4" Copper Pipe
Stagnation Temperature
Approx. 200°C (400°F)
Daily efficiency
~55% (~42% in winter)
Hailstone resistance
Diameters of less than 25mm (1 inch)
Heat pipe anti-freezing
-35°C (-31°F)
Typical Life span
15+ years


24 tube solar water heater collector
Solar Water Collector
• 24 58mm x 1800mm Vacuum tubes for Active Solar Systems
• Winter Resistant - Glycol System & Separated Tank
• SRCC Certified for 30% Federal Tax Rebate
QTY
$Ea.
1+
695
3+
660
5+
630
8+
595
15+
560
In stock
Contact for Freight
