Pumps > Aidi Macerator Pump, 12v DC [mac12v]
Search Store
Item Pictures

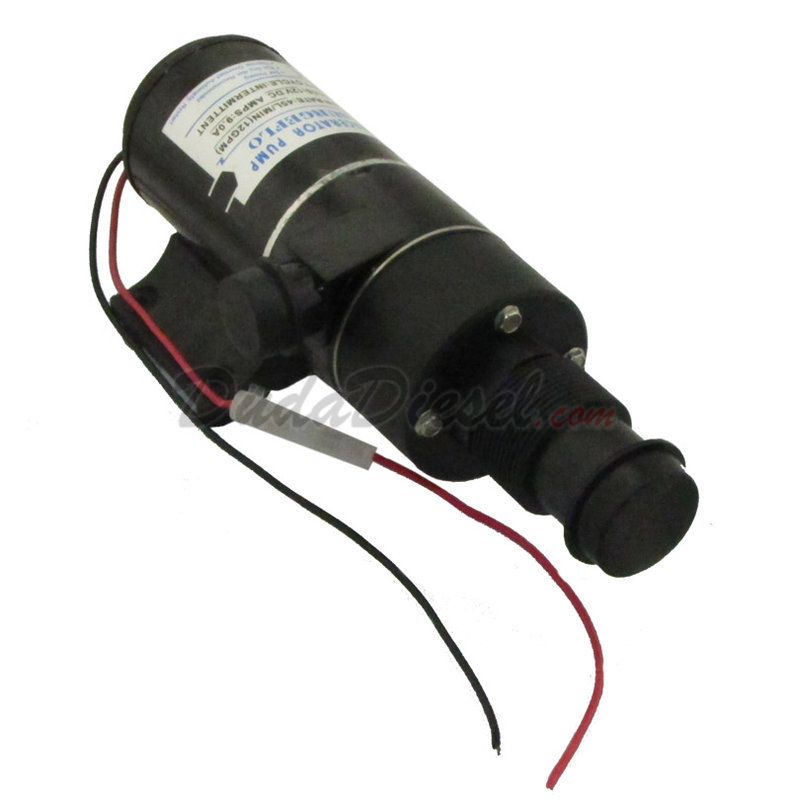

Macerator Pump Macerator Pump

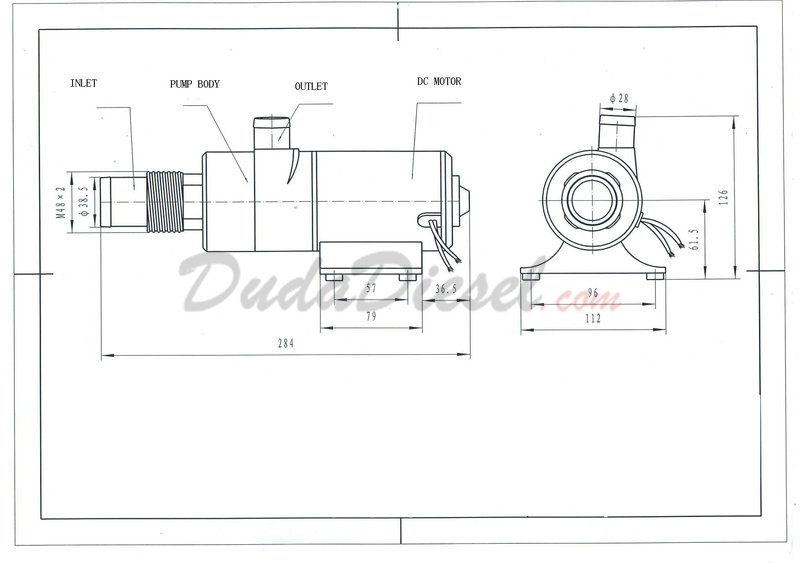

Design of Macerator Pump Design of Macerator Pump
Macerator Macerator

Item Description
12v Macerator Pump
Waste Transfer Pump

Special Dual-blade design for waster fluid transfer
Flow Rate (Open Flow):
45 L/min = 11.8 gpm
Voltage Input:
12v DC
Dimensions (approx):
11" x 3.5" x 3.5"
Amperage:
9.0
Ports:
1 1/2" Barb Inlet, 1" Barb Outlet
Self-Priming:
Yes
Max Pressure Output:
No Pressure Differential
Max Temperature:
176 deg F
Nominal Fluid Temperature:
140 deg F
Max Height:
Minimal - Transfer only
Suction  Height:
*Less than 3 feet
Types of Fluids Transferable:
Water, Vegetable Oil, WVO
Run Dry:
Not Recommended
Duty Cycle:
Intermediate
Fuse:
Included
Thermal Overload Protection:
Automatic Restart
*It is recommended that the suction hose remain primed with a check valve on the end when using this for WVO collection. Suction of viscous fluids is difficult for this pump and there should be as little suction height as possible to maximize transfer.


The Macerator pump uses a dual blade design to draw fluids. It acts as a blender and can chop up debris which is inside of the fluid. This is good for pumping things like fish tank water, used vegetable oil, waste water and other fluids which contain debris that needs to be chopped up so it will not clog the lines. This fast flow rate is great for large applications. Thermally protected design.


Warranty is for 6 months. Merchandise will be replaced by DudaDiesel, LLC if found defective under normal use. the warranty does not cover damaged pumps from pumping corrosive fluids or fluids with debris which will clog & damage the pump. Pump may not be run dry. Pump cannot handle biodiesel.


Macerator Pump
Aidi Macerator Pump, 12v DC
• For Water Applications
• 45 L/min = 11.8 Gpm
• Not for use with Bio diesel
QTY
$Ea.
1+
75
In stock
QTY
