Home Page > 304 Stainless Steel Filter Bag Housing Size #1 [cfv16]
Search Store
Item Pictures

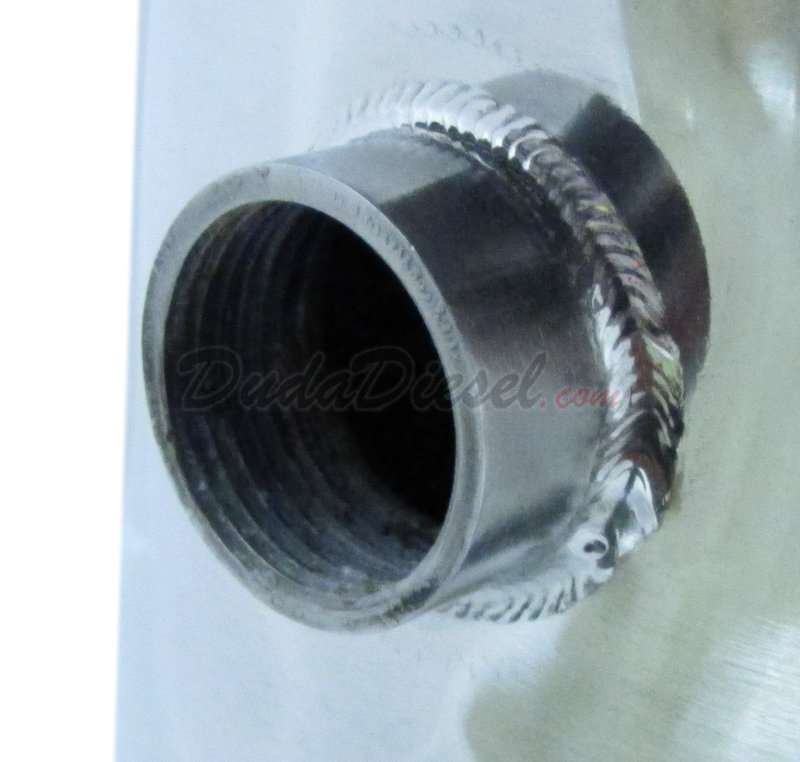

1&quot Port for filter bag housing 1&quot Port for filter bag housing

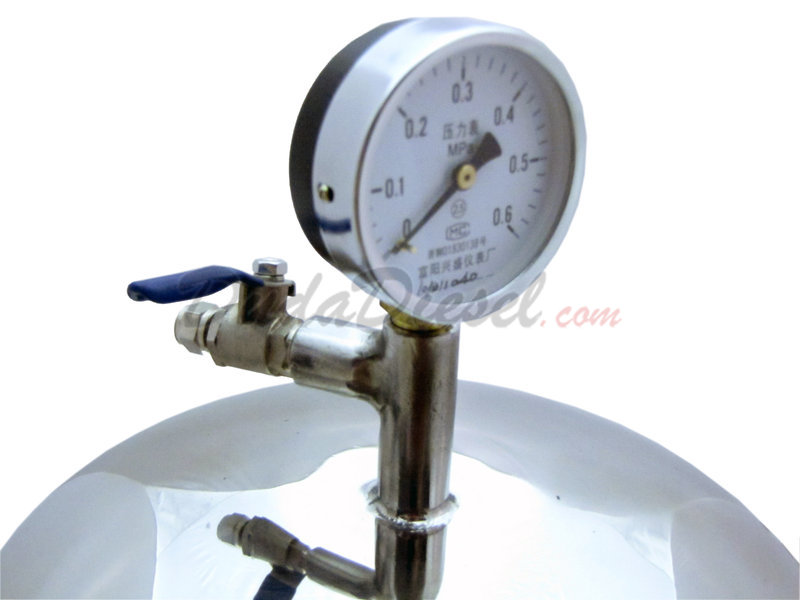

Pressure gauge for filter bag housing Pressure gauge for filter bag housing
Inside of filter bag housing Inside of filter bag housing

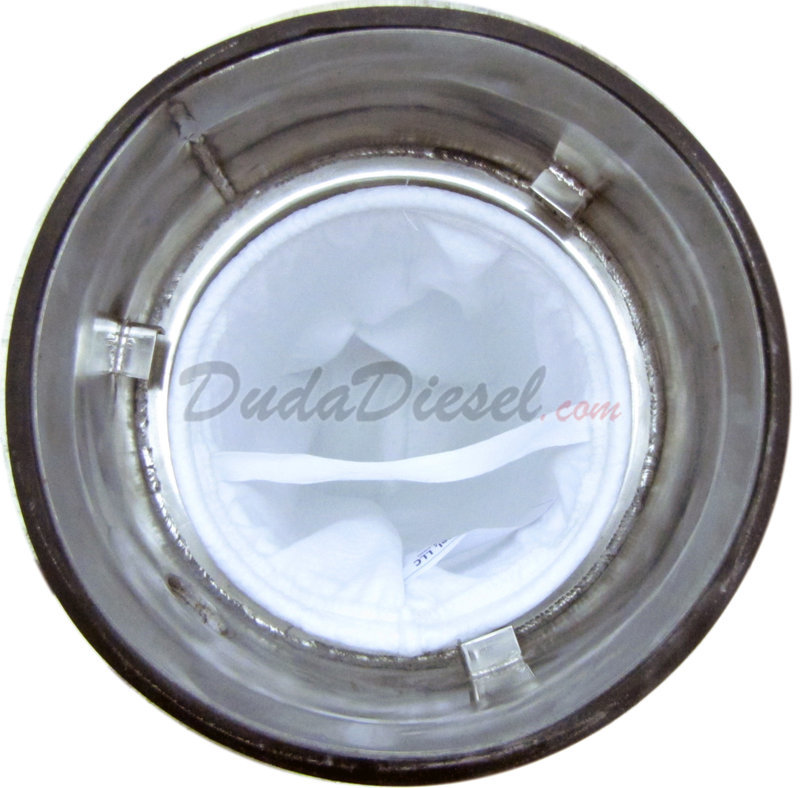

bag within filter vessel bag within filter vessel

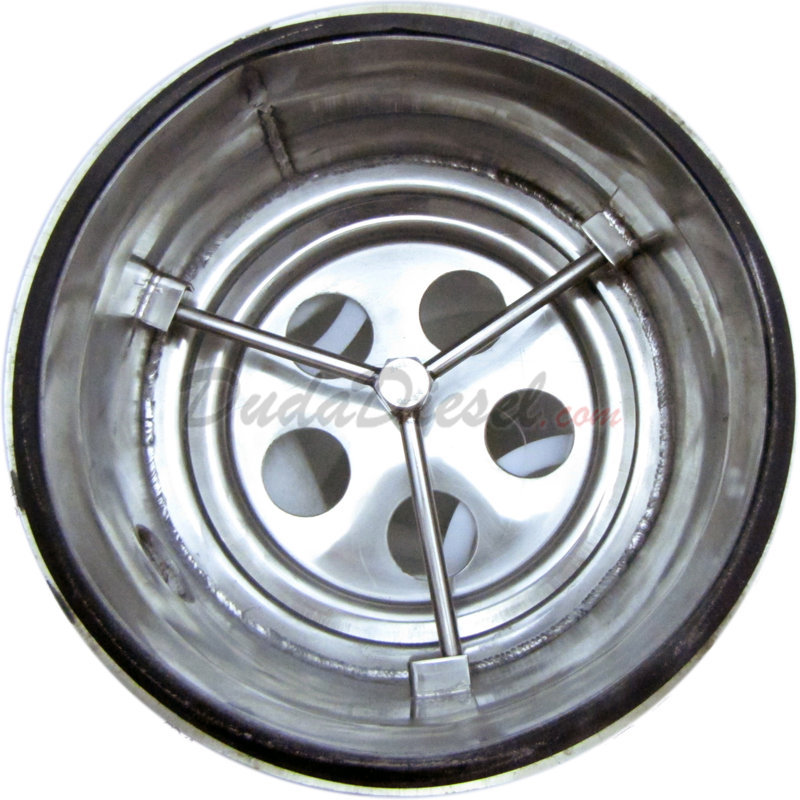

Inside of filter bag housing with strainer basket Inside of filter bag housing with strainer basket
filter bag basket filter bag basket
stand legs for housing stand legs for housing
304 Stainless Steel Filter Bag Housing 304 Stainless Steel Filter Bag Housing

Item Description

All 304 stainless steel construction. This filter bag housing provides full enclosure of your filter bags. The strainer basket within the housing provides full bag support to prevent blow out or stretching of the media. Pressure and high flow rates may be applied to get the fastest flow through filter bags. Using the housing allows full exhaustion of a bag prior to changing it without the sacrifice in filtering time.

These filter bag housings use an eye-bolt clamp style to allow for high flow and high pressure without leakage, while still maintaining an easy to remove cover. Simply unscrew the eye bolts, pop off the lid, swap out the filter, clamp the lid back down and filtering can be resumed. A PTFE oring gasket allows for a good seal against leaks and high chemical resistance.

Duda Diesel Stainless Steel Filter Bag Housings
Model
cfv14
cfv16
cfv32
Bag Sizes
4" x 14"
7" x 16"
7" x 32"
Industry Standard
Size#4
Size#1
Size2
Material
304 Stainless Steel
Body Thickness
1.5mm (16 gauge)
In/Out Ports
1"
1"
1-1/2"
Max Flow (For Water)
22 gpm
44gpm
88 gpm
Pressure Gauge
0-0.6 Mpa (0-85 psi)
Gauge Port
1/4"
Air Purge Ball Valve
1/4"
Max Operating Pressure
0.6Mpa (87 Psi)
Drain Port
1/2" (on bottom)
Stand
Welded Legs on Bottom
Gasket Material
PTFE
Bag Reinforcement
Stainless Steel Filter Bag Basket


304 Stainless Steel Filter Bag Housing
304 Stainless Steel Filter Bag Housing Size #1
• Supports 7" x 16" Filter Bags
• Pressure gauge, bottom drain, 1" Ports
• Eye-Bolt Seal, Welded Legs
QTY
$Ea.
1+
650
2+
620
In stock
QTY
