This multi-purpose manual lever ball valve has excellent corrosion resistance and is fit for many applications. The valve is fitted with PTFE seals for maximizing corrosion resistance and lifespan of the ball valve. The handle is stainless steel.
When using biodiesel:
Stainless steel ball valves are ideal for biodiesel processors. Stainless steel has excellent corrosion resistance to biodiesel, methanol, sulfuric acid and caustics. Use of stainless steel ensures a long-lasting processor.
3 Way ball valves can be used for redirecting fluids or changing the direction of flow entirely.
L-type ball valves are used for directing flow from one inlet to 1 of 2 possible outlets (or vise versa for 2 fluid inlets to 1 outlet)
L-Type Ball Valve |
 |
 |

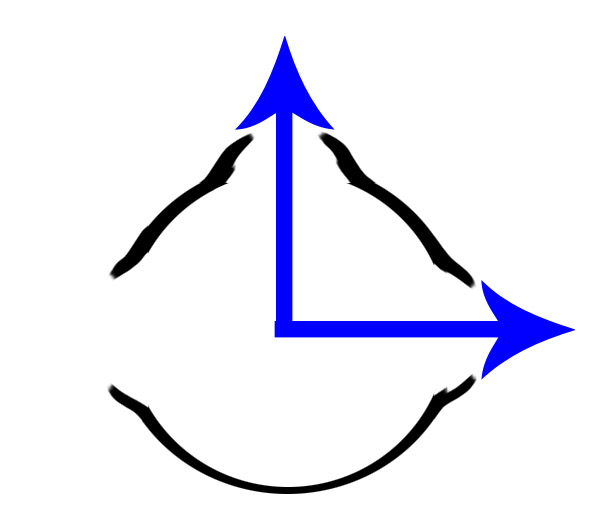

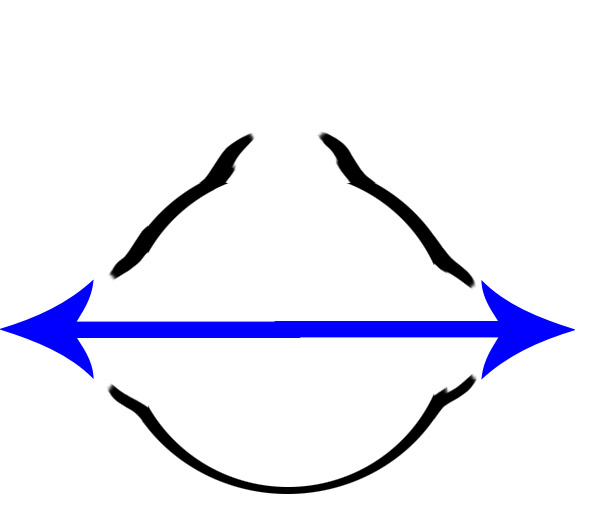

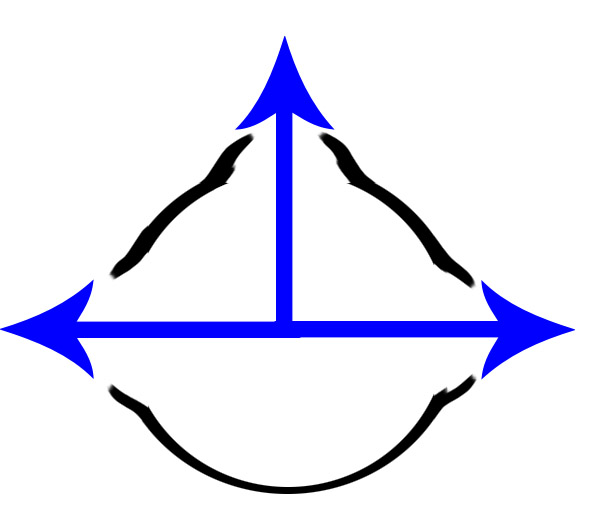

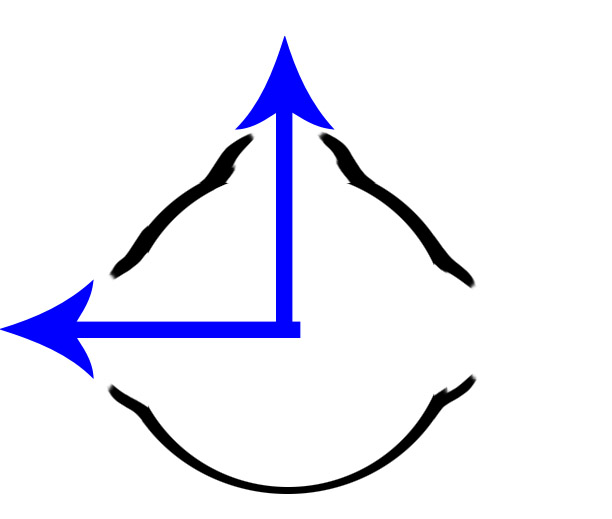

T-Type ball valves function the same as L-type ball valves, but they can also allow all 3 ports to be open at the same time, or allow flow to pass across the valve.
3-Way Ball Valve Specifications |
Standard or Nonstandard |
Standard |
Structure |
Ball |
Pressure |
Medium Pressure |
Operation |
Manual |
Material |
304 Stainless Steel |
Media |
Water, Oil, Gas |
Types of Flow |
L-Type, T-Type |
3-way Ball Valve Ball Dimensions |
See dimensions photo for reference |
Port Connections |
Port Size |
L (mm) |
W (mm) |
H (mm) |
1/2" |
10mm (0.40") |
73.5 |
140 |
68 |
3/4" |
15mm (0.60") |
83 |
140 |
72 |
1" |
20mm (0.79") |
90 |
162 |
82 |
1-1/4" |
25mm (0.98") |
118 |
162 |
92 |
1-1/2" |
32mm (1.26") |
133 |
198 |
106 |
2" |
38mm (1.50") |
146 |
198 |
112 |
Part Identifications |
No |
Part Name |
Material |
1 |
Valve Body |
CF8 |
2 |
Ball |
304 |
3 |
Valve Cover |
CF8 |
4 |
Gasket |
PTFE |
5 |
Valve Base |
PTFE |
6 |
Gasket |
PTFE |
7 |
Filler |
PTFE |
8 |
Press Cover |
201 |
9 |
Valve Stem |
304 |
10 |
Spring Gasket |
201 |
11 |
Screw Nut |
201 |
12 |
Handle |
201 |
13 |
Handle |
PVC |
|

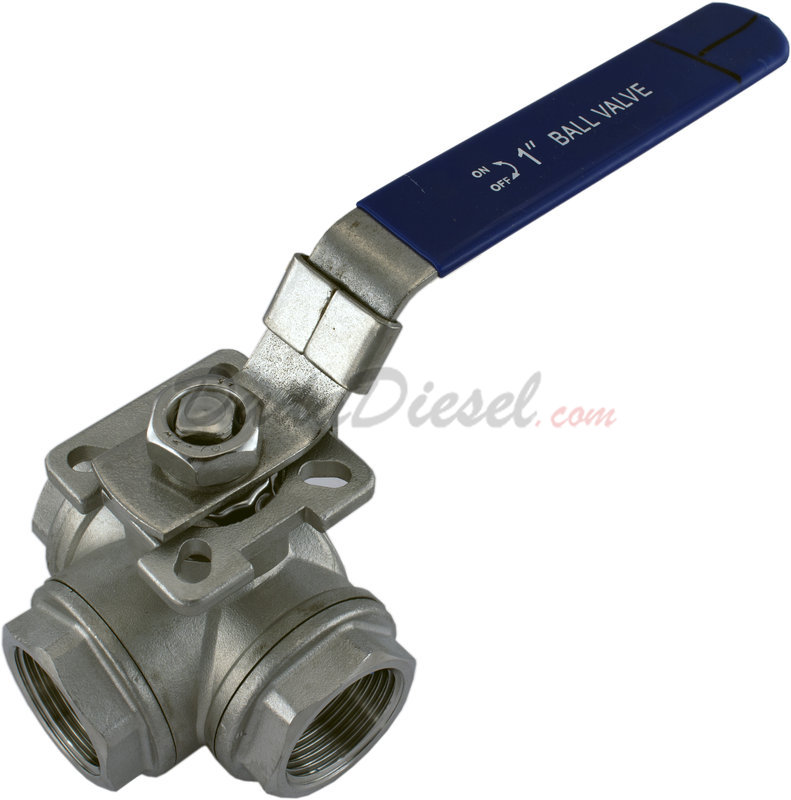

3 way stainless steel ball valve

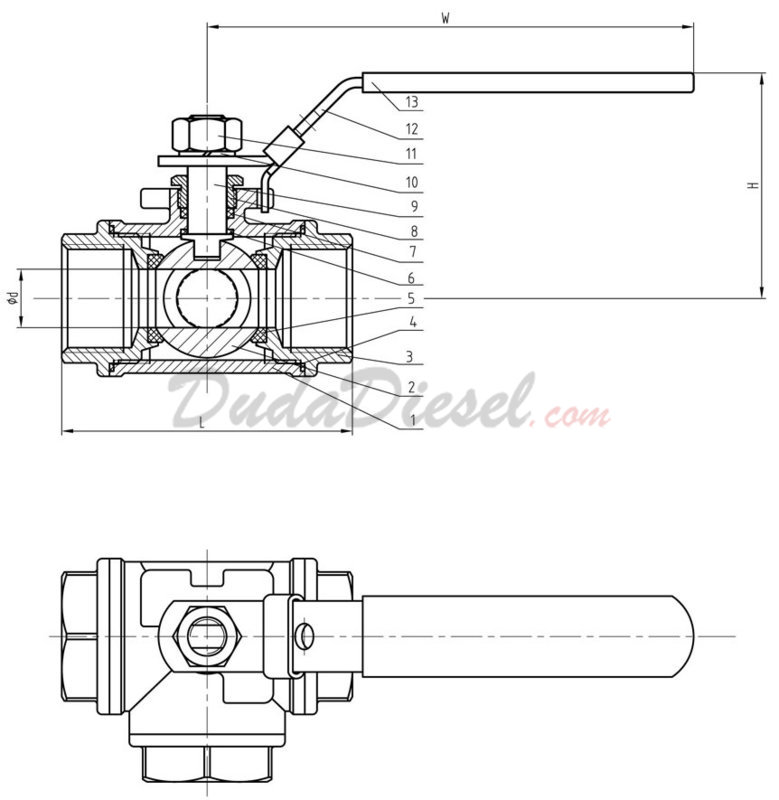

3-way ball valve drawing
